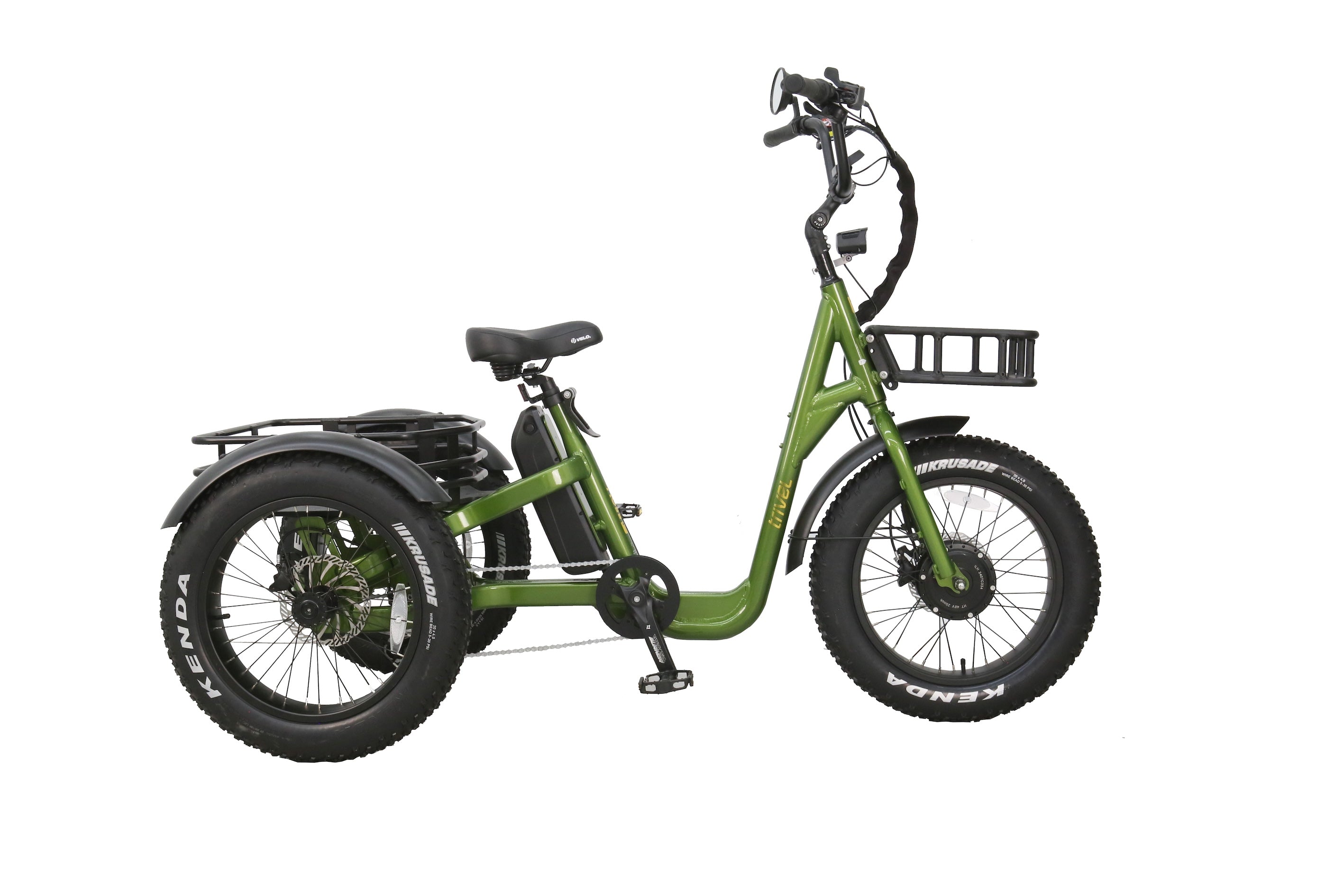

MOVE FAT

☑ Frame: 6061-T6 Aluminum trike frame, low step thru

☑ Differential: Open type differential
Fork: Rigid fork

☑ Tires: Kenda Kranium 24 x 2.1'' (Reg.)
Kenda Krusade 20 x 4'' (Fat)

☑ Cranks: Aluminum 160 mm, 38 T, dual chainguard

☑ Bottom bracket: Sealed bearing cartridge

☑ Pedals: Alloy, sealed bearings

☑ Saddle: Velo comfort saddle

☑ Handlebar: High rise handlebar

☑ Grips: Ergonomic grips

☑ Stem: Promax MA-595S, adjustable stem

☑ Headset: Semi integrated headset, sealed bearings

☑ Drivetrain: 9 speed mid-hub drivetrain

☑ Brakes: Tektro HD-E540/545 Hydraulic brakes, with parking brakes front and rear, Twin rear brakes, 2.3 x 180 mm cargo rated discs

☑ Shifter: Shimano 9 speed shifter

☑ Derailleur: Shimano Alivio 9 speed

☑ Cassette: Shimano 9 speed, 11-32 T

☑ Chain: KMC 9 speed, Rust protection

☑ Lights: Front and rear, main battery powered

☑ Included accessories: High volume rear basket, Easy adjust seatpost clamp, fenders, handlebar end mirror, bottle cag

☑ Assist levels: 5 Levels of pedal assist + Throttle

☑ Motor: Front hub motor, 500W, 65 Nm

☑ Max speed: 20 miles/hour, 32 km/h

☑ Max range: 43 miles / 70 km

☑ Battery: 48V, 14 Ah, 672 Wh, Lithium-ion, UL certified

☑ Display: LCD central display

☑ Sensor: Cadence sensor

☑ Length: 72'' / 183 cm

☑ Width: 30,7'' / 78 cm

☑ Height: 46,9'' to 50,4'' / 119 cm to 128 cm

☑ Standover (step-thru height): 10,4 '' / 26 cm 10'' / 25 cm

☑ Rider's height range: 4'11'' to 6'2'' / 150 cm to 188 cm

☑ Weight limit: 450 lbs / 204 kg
