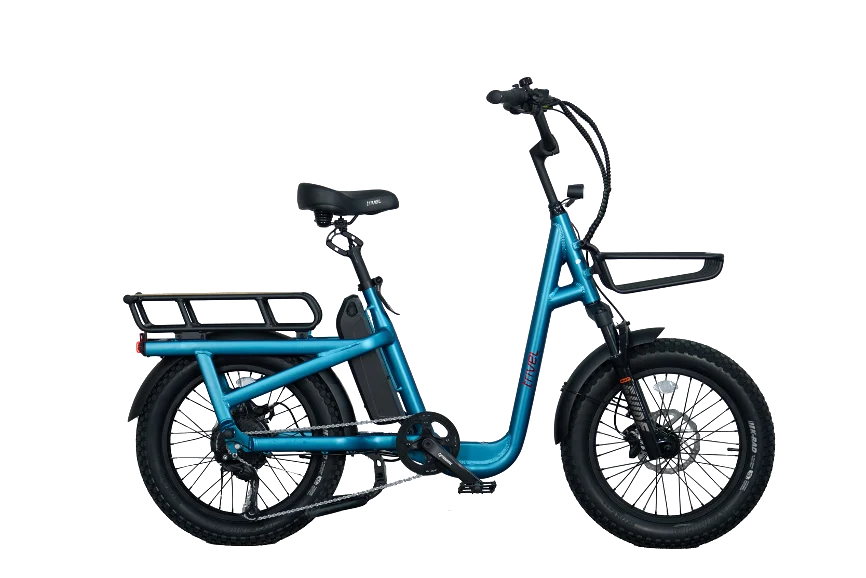

COMBI CT

Cargo bike frame with the lowest step-through design

AVAILABLE SOON

North american design

Durability and comfort
Cargo bike frame with the lowest step-through design

Long Battery Life

Reliable materials

Powerful 500W Motor

32 km/h

Maximum speed

Ultra low

Step through
Sturdy rear rack for all your transport needs
Ergonomic design for your comfort and ideal riding position
Adjustable seat and handlebars
User friendly design
Sturdy rear rack for all your transport needs
Ergonomic design for your comfort and ideal riding position
Adjustable seat and handlebars
User friendly design

Technical specifications

☑ Suspension fork: RST Guide TNL, 80 mm travel, preload adjustment and lockout

☑ Tires size: 20" x 3.3''

☑ Tires model: Kenda Krad, Kshield puncture protection

☑ Cranks: Aluminum 165 mm, JIS

☑ Chainwheel/cranks: 38 T, dual chainguard

☑ Bottom bracket: Bafang torque sensor BB

☑ Pedals: Alloy, sealed bearings

☑ Saddle: Velo comfort saddle

☑ Handlebar: BMX style handlebar, 670 mm width

☑ Grips: Ergonomic grips, locked on

☑ Stem: Trivel aluminum quill stem, 100 mm height adjustment

☑ Headset: Threaded 1"1/8 headset, sealed bearings

☑ Drivetrain: 9 speed

☑ Brakes: Tektro HD-E3940, 4 piston hydraulic brakes, 2.3 x 180 mm cargo rated discs

☑ Shifter: Shimano 9 speed shifter

☑ Derailleur: Shimano Sora 9 speed, short cage

☑ Cassette: Shimano 9 speed, 11-32 T

☑ Chain: KMC 9 speed, EcoProteQ rust protection

☑ Light features: Brake lights, auto light feature

☑ Included accessories: Rear rack, fenders, two-legged kickstand, , handlebar end mirror,bottle cage

☑ Assist levels: 5 Levels of pedal assist + Throttle

☑ Motor: Bafang H720 rear hub motor, 500 W, 85 Nm

☑ Max speed: 20 miles/hour, 32 km/h

☑ Max range: 45 miles / 72 km

☑ Battery: 48V, 14 Ah, 672 Wh, Lithium-ion,

☑ Display: Bafang DP E181.CAN

☑ Complete length: ''/173 cm

☑ Complete width: 28'' /71cm

☑ Height (handlebar): Min. stem adjustment: 44'' / 111 cm - Max. stem adjustment: 77,5'' / 121 cm

☑ Step-thru height: 11,2'' / 28 cm

☑ Rider's height range: 4'11''-6'4'' / 150 - 193 cm

☑ Weight limit: 400LBS
